Mission M108 Avionics Options

The Mission M108 is available with a Garmin G3X Touch integrated system with either a single 10" display or dual 7" displays, to which further optional equipment can be added.

Instrument panels:

M108 "VFR panel"
M108 "VFR Plus panel"
M108 "IFR panel"

M108 instrument panels

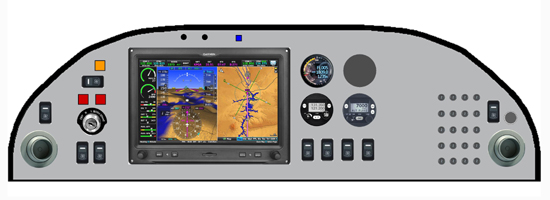

M108 "VFR panel"

Standard Equipment:

● Garmin G3X Touch flight deck, with 10" touchscreen display
● Standby magnetic compass, SIRS NV2A

Optional Equipment:

           ● VHF com radio & intercom, Trig Avionics TY91
           ● Mode S transponder, Trig Avionics TT21
           ● Garmin G3X integrated autopilot with roll & pitch servos
           ● Standby air speed indicator & altimeter, LX BU57
           ● Collision warning system, Garrecht Air Traffic

M108 "VFR Plus panel"

Standard Equipment:

● Garmin G3X Touch flight deck, with 10" touchscreen display
● Standby magnetic compass, SIRS NV2A

Optional Equipment:

           ● VHF (nav)com radio & intercom, Trig Avionics TY96 or TX56
           ● GPS/WAAS navigator, Garmin GPS175
           ● Intercom, PS Engineering PM1000II
           ● Mode S transponder, Garmin GTX35R
           ● Garmin G3X integrated autopilot with roll & pitch servos
           ● Standby air speed indicator & altimeter, LX BU57
           ● Collision warning system, Garrecht Air Traffic

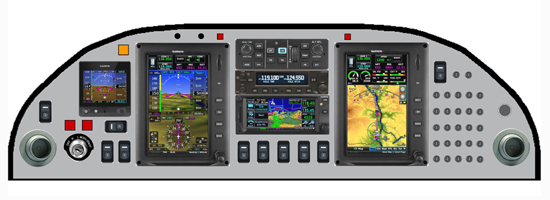

M108 "IFR panel"

Standard Equipment:

           ● Garmin G3X Touch flight deck, with dual 7" touchscreen displays
           ● Audio panel & intercom, remote Garmin GMA245R
           ● GPS/WAAS navigator, Garmin GPS175
           ● VHF nav/com, Garmin GNC255A
           ● Mode S transponder, Garmin GTX35R
           ● Standby magnetic compass, SIRS NV2A

Optional Equipment:

           ● Garmin G5 standby EFIS, displays air speed indicator, altimeter,
                attitude indicator and slip/skid indicator
           ● Upgrade of GPS navigator to GTN625, GTN635 or GTN650
           ● Remote DME, Bendix/King
           ● Garmin G3X integrated autopilot with GMC507 mode controller
           ● Traffic system, Garrecht Air Traffic
           ● Stormscope, L-3 Avionics WX-500
           ● Wireless interface, Garmin Flight Stream 210 or 510
